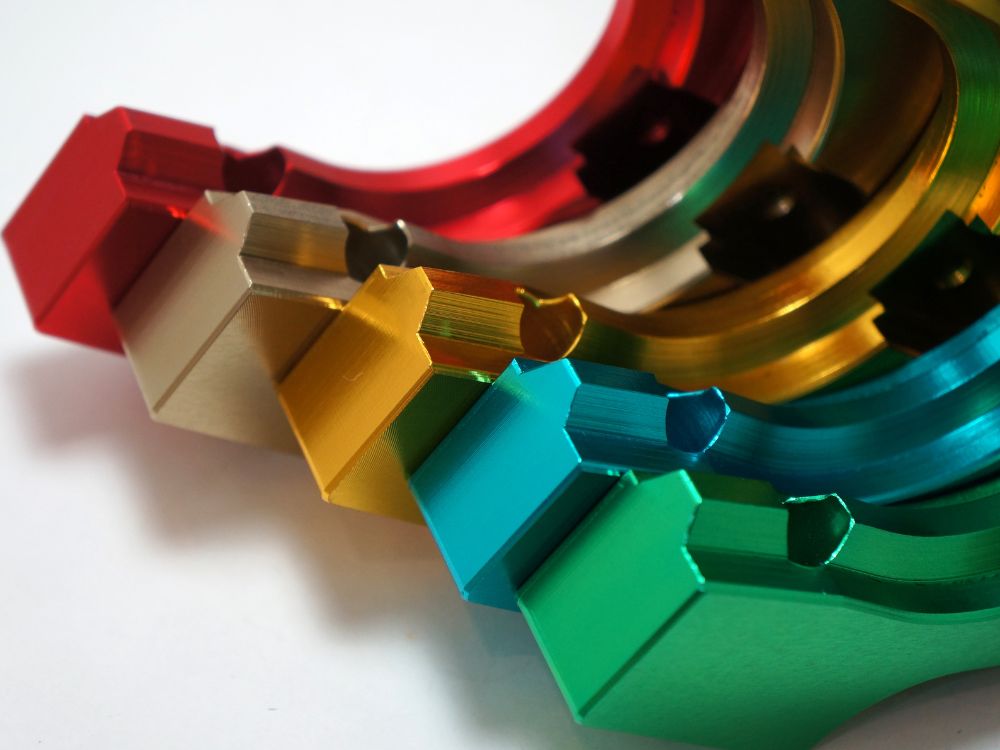

Anodizing aluminum at home can add durable protection and vibrant color to your metal parts. You’ll need some basic tools and common household chemicals to get started. This process creates a hard, corrosion-resistant layer that lasts. Learning how to anodize aluminum takes simple steps and safety checks. You’ll end up with a professional-looking finish on your DIY metal projects.
Contents
How to Anodize Aluminum
Anodizing aluminum can be done at home with the proper equipment and tools. Below is a complete guideline on how to anodize aluminum.
Safety Precautions
Safety should be your top priority when you anodize aluminum at home. Follow these precautions to protect yourself and avoid damaging your workspace.
- Wear chemical-resistant gloves, goggles, and an apron to protect skin and eyes.
- Use a full face shield if splashing is likely.
- Work in a well-ventilated area or under a fume hood to avoid acid fumes.
- Keep a neutralizing agent such as a baking soda solution nearby in case of spills.
- Never mix water and acid while wearing bare hands. Always pour acid into water.
- Use acid-resistant containers and tools only for anodizing tasks.
- Unplug or turn off the power supply before adjusting any wiring.
- Keep a Class C fire extinguisher on hand for electrical or chemical fires.
- Store acids and chemicals in labeled, sealed containers away from heat.
- Dispose of spent solutions according to local hazardous waste regulations.
Materials and Equipment Needed
Getting the right materials and equipment helps ensure a safe and effective anodizing process. Gather supplies to achieve durable finishes on aluminum parts.
- Materials:
- Aluminum workpieces (clean, free of paint and oxidation)
- Sulfuric acid (battery acid or reagent-grade) for oxide growth
- Distilled water for mixing solutions and rinsing
- Dye (optional, water-soluble, metal-safe) for coloring
- Nickel acetate crystals for acid sealing option
- Equipment:
- DC power supply adjustable to 12–15 V and 3–5 A
- Acid-resistant container (plastic or glass) for the bath
- Cathode plate made of lead or stainless steel
- Insulated wires and acid-resistant clips for electrical connections
- Thermometer to monitor bath temperature
- Hot plate or ice bath for precise temperature control
- Graduated cylinder, scale, and stirring rod for measurements
- Chemical-resistant gloves, goggles, apron, and good ventilation
- Timer or stopwatch for tracking process times
Preparing the Aluminum Surface
Proper surface preparation is critical for a strong, uniform anodic layer. Follow cleaning and etching steps to remove contaminants and open microscopic pores are an important step on how to anodize aluminum.
- Cleaning and degreasing:
- Use a mild detergent or commercial degreaser to remove oil, wax, and fingerprints
- Rinse under distilled water to eliminate residue and mineral deposits
- Scrub gently with a soft brush to lift embedded particles without scratching
- Light etching:
- Submerge aluminum in 5–10% sodium hydroxide solution for 30–60 seconds, wearing safety gear
- Neutralize with a dilute nitric acid rinse, then rinse thoroughly with distilled water
- Inspect surface visually for a matte finish indicating proper etch depth
Setting Up the Anodizing Bath
Creating a stable anodizing bath ensures uniform oxide growth. Mix the acid solution and control temperature to maintain consistent current and high-quality results.
- Choosing and mixing the acid solution:
- Combine 15–20% sulfuric acid with distilled water, adding acid to water slowly
- Stir gently and allow solution to cool to room temperature before use
- Wear acid-resistant gloves and goggles to prevent chemical injuries
- Filter the acid solution through a paper filter to remove particulate contaminants
- Controlling temperature:
- Maintain bath temperature between 20–24 °C (68–75 °F) throughout the process
- Use a thermometer and adjust with a hot plate or ice bath as needed
- Avoid large temperature swings that can cause uneven oxide growth
- Record temperature periodically to ensure consistent bath conditions
Power Supply Setup
A reliable power supply delivers consistent current for even oxide layers. Properly connect the anode and cathode to avoid arcing and ensure safety.
- Selecting a suitable power source:
- Choose a DC supply adjustable to 12–15 V and 2–5 A for small parts
- Ensure built-in current limiting and stable voltage output for safety
- Verify voltage and current settings with a multimeter before starting
- Connecting anode and cathode:
- Clip the aluminum workpiece to the positive (+) terminal using acid-resistant clips
- Attach the cathode (lead or stainless steel) to the negative (–) terminal, avoiding contact with the anode
- Position leads to minimize cable length and prevent voltage drop
Performing the Anodizing Process
With your bath and power supply ready, you can start the anodizing process. Monitor current and timing closely to build uniform oxide coatings on aluminum.
- Immersion time and current monitoring:
- Set current density to 1.0–1.5 A/dm² and adjust voltage to maintain it
- Anodize for 30–60 minutes, observing current stability and recording any fluctuations
- Gently agitate the workpiece occasionally to prevent air bubble formation
- Rinsing steps:
- Rinse the part in running distilled water for 2–3 minutes to remove acid
- Finish with a second distilled water rinse to ensure all residues are gone
- Handle parts carefully to avoid scratching the fresh oxide layer

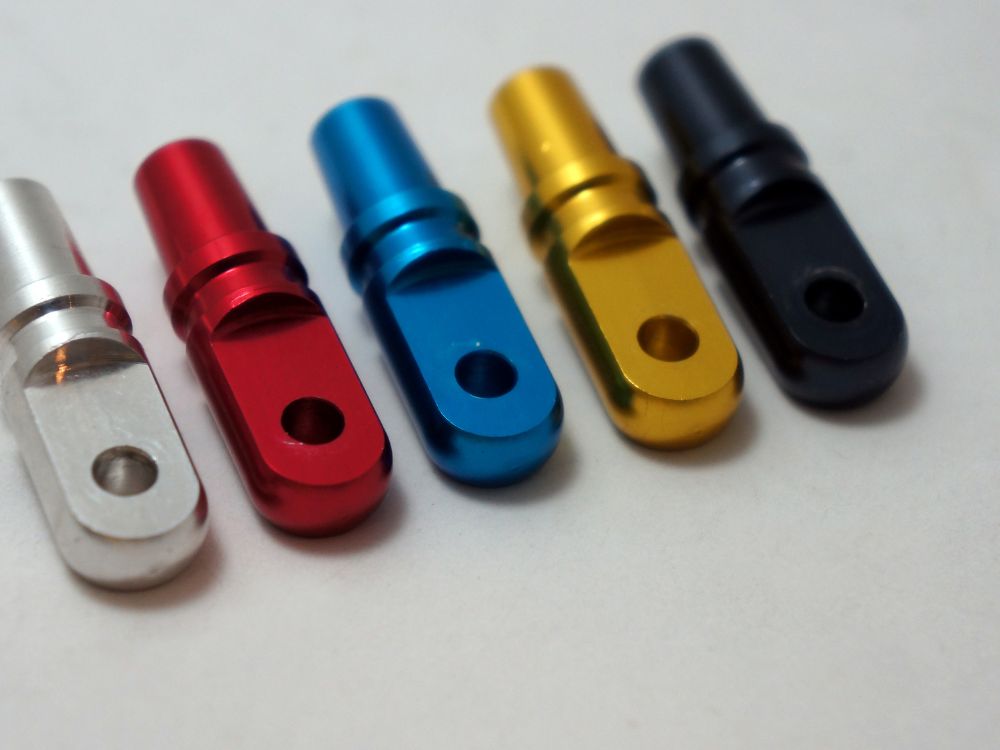

Optional Coloring Techniques
Adding color to your anodized aluminum enhances both appearance and wear resistance. Select the right dyes and follow immersion guidelines for consistent, fade-resistant finishes.
- Dye selection:
- Select metal-safe, water-soluble dyes designed for anodized surfaces
- Adjust dye concentration (typically 2–5 g per liter) for desired shade intensity
- Test dye on a scrap piece to preview final color
- Immersion dye bath:
- Heat dye solution to 50–60 °C (122–140 °F) for optimal color uptake
- Immerse the anodized part for 10–20 minutes, stirring gently every 5 minutes
- Rinse with distilled water to remove surface dye before sealing
Sealing the Anodized Layer
Sealing locks in the anodic layer and dye for corrosion and fade resistance. Choose a hot water seal or nickel acetate treatment to finalize the finish.
- Hot water seal:
- Immerse the anodized part in boiling distilled water for 20–30 minutes
- Allow to cool slowly, locking pores and improving hardness
- Test seal by verifying uniform sheen across the surface
- Pat dry with a lint-free cloth after sealing to inspect uniform coverage
- Nickel acetate seal:
- Prepare a 1–2% nickel acetate solution at room temperature
- Soak the part for 10–20 minutes, then rinse thoroughly with distilled water
- Use fresh solution to ensure effective sealing and prevent contamination
Troubleshooting Common Issues
Troubleshooting common issues in your home anodizing setup helps you achieve consistent finish thickness, uniform color, and strong corrosion resistance for professional-grade, repeatable results. This guide shows you how to spot issues like uneven oxide, burn marks, and dye problems so you can apply targeted, step-by-step fixes quickly.
Uneven Oxide Layer
An uneven or spotty oxide layer often indicates inconsistent current density or leftover contaminants on the aluminum surface. Check that you cleaned and degreased the part properly before etching.
Adjust your power supply to maintain steady current and voltage. Gently agitate the bath throughout to prevent stagnant zones. Inspect all electrical connections for tight contact.
Burn Marks
Dark or burned areas appear when you pushed the amperage too high or let voltage spike during anodizing. That excessive heat creates localized burn marks and weak spots in the oxide layer. Lower your current density by reducing amps or by increasing the distance between anode and cathode. Make sure the electrodes never touch. Monitor voltage readings constantly to catch spikes early.
Poor Dye Uptake
A dull or faded color after dyeing means dye did not penetrate pores properly. Temperatures that are too low or dye concentrations that are too weak can cause poor uptake. Increase dye bath temperature to 50–60 °C and extend immersion time. Stir dye solution gently every few minutes. Test on scrap pieces before treating final parts.
Contaminated Bath
Particles, oils, or metal debris in your acid bath can disrupt oxide formation and cause pitting or dull patches. Always filter fresh acid mixture through paper or cloth before each run. Clean your tank and cathode plate thoroughly after every batch to remove buildup. Replace the bath solution periodically to maintain purity. Wear gloves and avoid touching the solution directly to prevent contamination.
Temperature Fluctuations
Bath temperature swings alter current efficiency and compromise oxide layer strength. Keep your bath between 20–24 °C by using a hot plate for heating or an ice bath for cooling. Monitor temperature continuously with a probe and adjust promptly. Stir the solution gently to distribute heat evenly. Log readings periodically to spot trends and maintain optimal conditions.
Electrical Arcing
Sparks or arcing during anodizing damage the oxide layer and leave dark, localized pits. Arcing often occurs when electrodes touch or sit too close together. Inspect clamps and leads to ensure they are secure and isolated from the bath. Increase the distance between anode and cathode to reduce field concentration. Lower voltage slightly if arcing continues.
Flaking or Peeling
Flaking or peeling of the oxide layer after sealing indicates incomplete pore closure. This often results from poor surface prep or abrupt cooling that stresses the seal. Reseal using pure, boiling distilled water for 20–30 minutes or fresh nickel acetate solution. Maintain solution temperature and avoid rapid temperature changes. Pat parts dry gently to preserve the sealed finish.
Maintenance and Care of Anodized Aluminum
Anodized aluminum stays looking sharp when you follow simple care steps. A little routine cleaning prevents corrosion and preserves color vibrancy.
Regular Cleaning
Keep your finish free of dirt and grime with gentle washing. Use a soft cloth or sponge and a mild detergent. Rinse thoroughly with clean water and dry with a lint-free towel.
Gentle Cleaning Agents
Avoid harsh household cleaners that contain acids or alkalis. Opt for pH-neutral soaps or specialized aluminum cleaners. Test any new product on a small area before full use.
Avoiding Abrasive Tools
Never scrub with steel wool or hard-bristled brushes. These can scratch the oxide layer and expose raw aluminum. If you need extra scrubbing power, use a non-abrasive pad designed for delicate surfaces.
Preventing Scratches
Handle anodized parts with care to avoid metal-on-metal contact. Store pieces on soft surfaces or hang them to prevent rubbing. If you stack items, place protective felt or cloth between each part.
Dealing with Stains
Oil, grease, or hard-water spots can dull the finish over time. Apply a paste of baking soda and water to stained areas. Let it sit for five minutes, then rinse thoroughly and pat dry.
Routine Inspections
Check your anodized surfaces monthly for chips or discoloration. Look for areas where the oxide might be wearing thin. Early detection lets you clean or re-seal before corrosion takes hold.
UV and Environmental Protection
Long-term sun exposure can fade dye-based colors over years. Whenever possible, keep colored parts out of direct sunlight. Indoor storage or shaded areas extend the life of your finish.
Storage Guidelines
Keep anodized aluminum in a dry, climate-controlled spot. High humidity can promote surface oxidation at exposed edges. Use sealed containers or plastic wrap for long-term storage.
Professional Maintenance
For heavy wear or large components, consider a commercial maintenance service. Professionals can re-seal or re-anodize parts to restore factory-grade protection. Schedule service annually if you rely on anodized parts in harsh conditions.

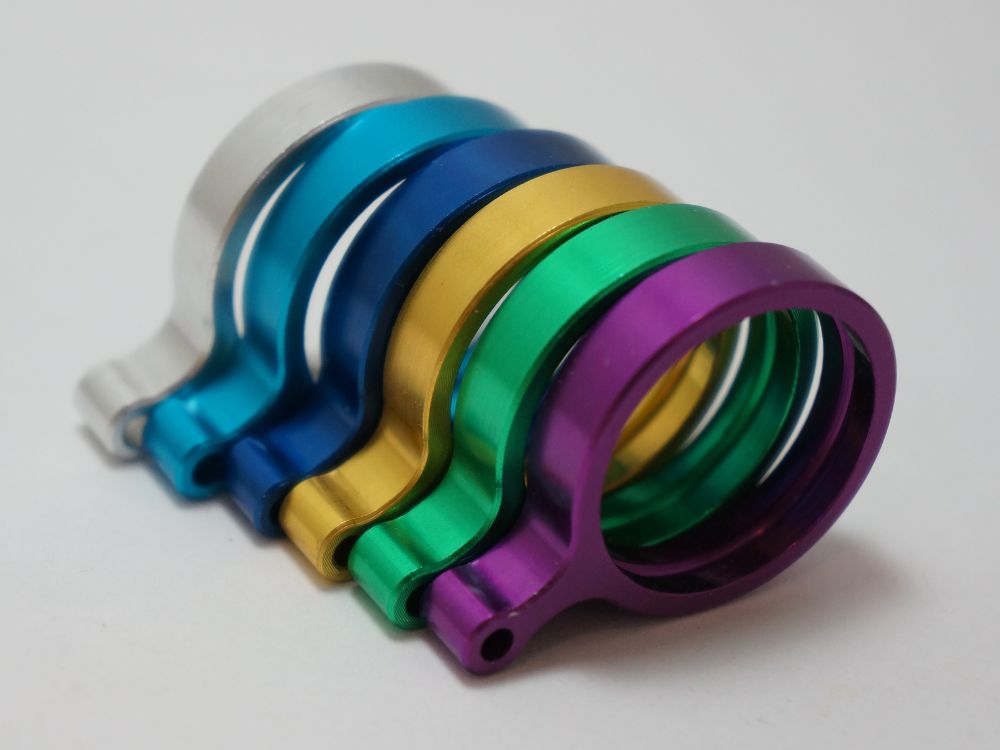

Conclusion
Knowing how to anodize aluminum at home gives your parts a durable, corrosion-resistant finish. You learned how to prep, immerse, color, and seal the metal for lasting results. Always keep safety gear on and monitor temperature and current closely. With practice, you’ll achieve consistent, professional-quality finishes on every aluminum project.
We have other metal projects to tackle. Check out our guide to metal-stamped jewelry next!
